Inquiry:
▪ Fiber Optic Terminal Box

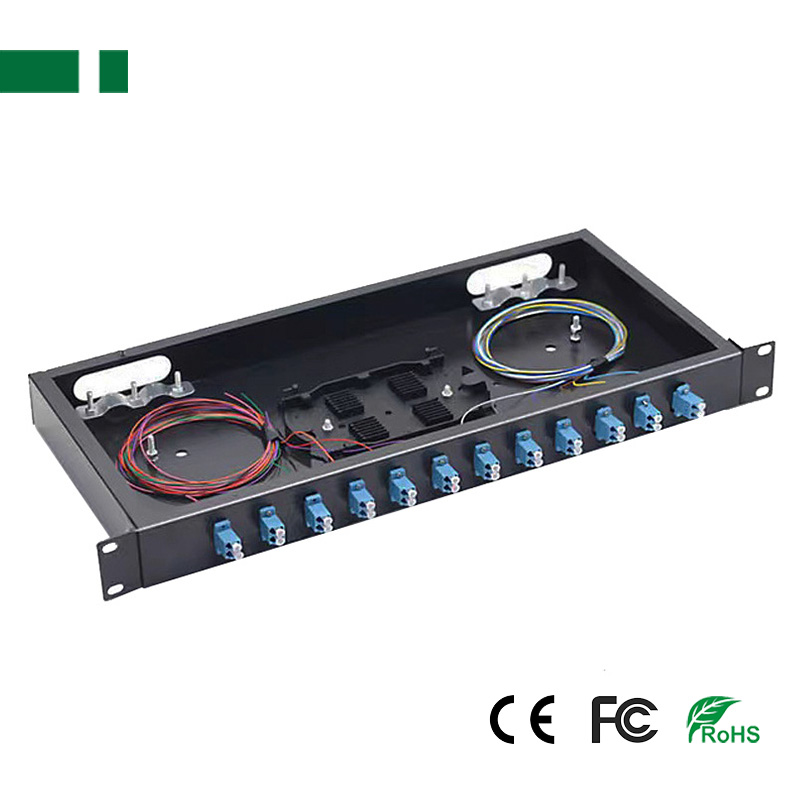

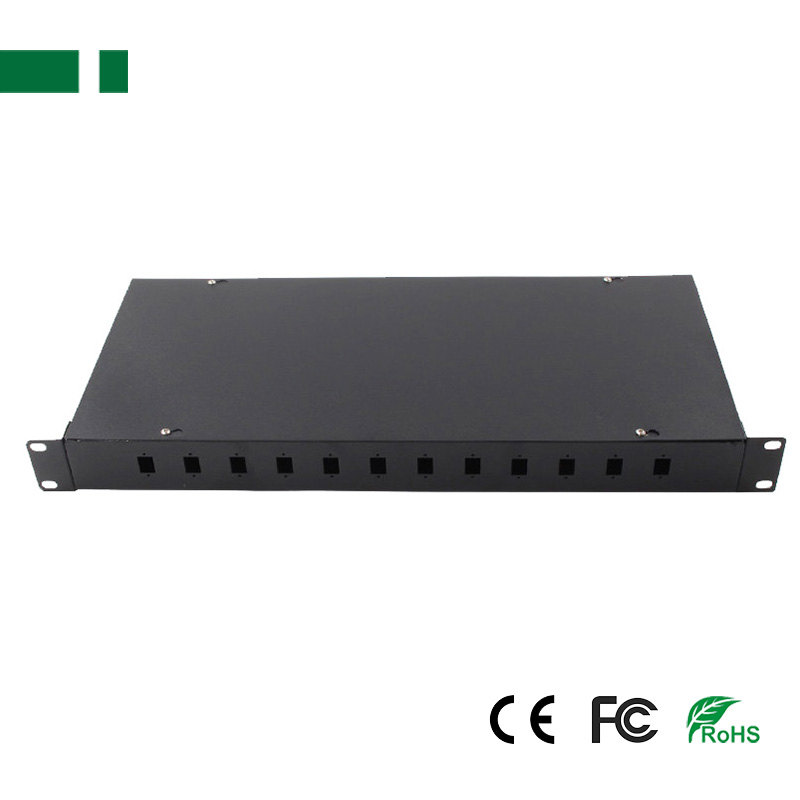

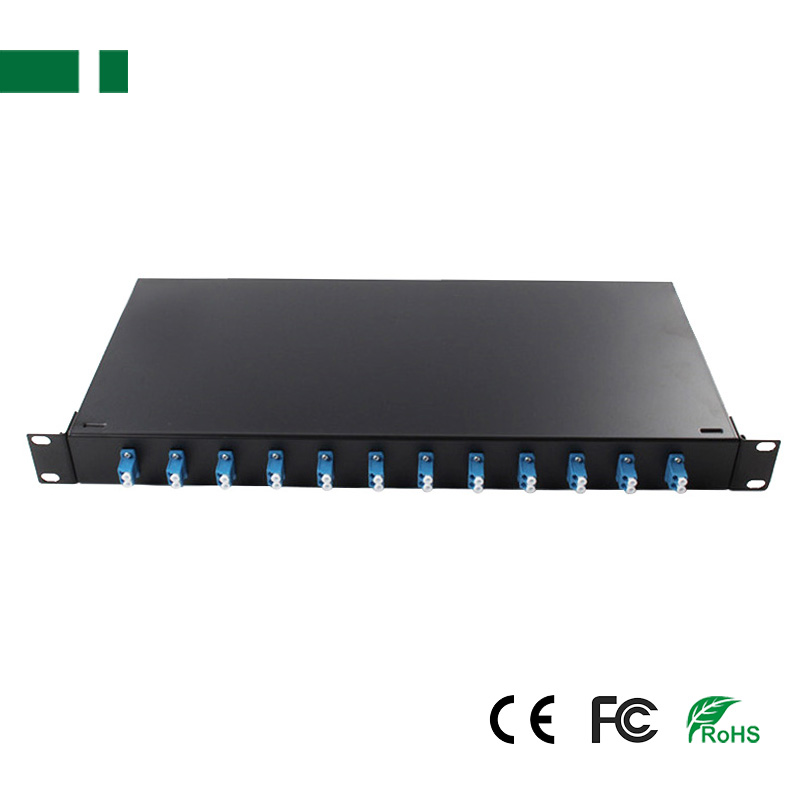

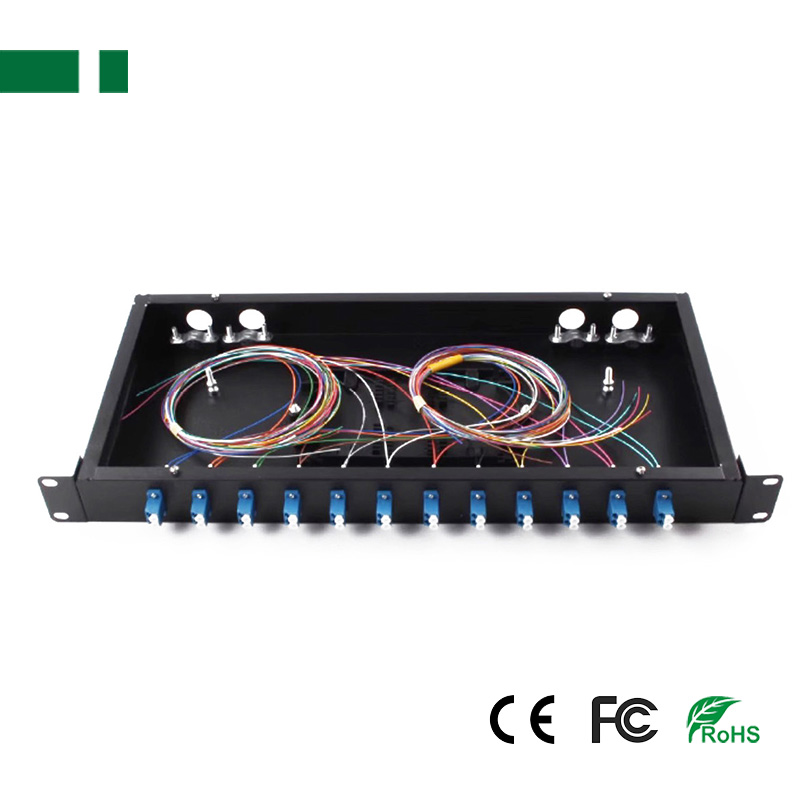

CFB-1012C/LC 12 Ports LC Fiber Optic Terminal Box for 19 Inch Rack Mount
- ▪ Material: Hight quality steel with cover by electrostatic painted;

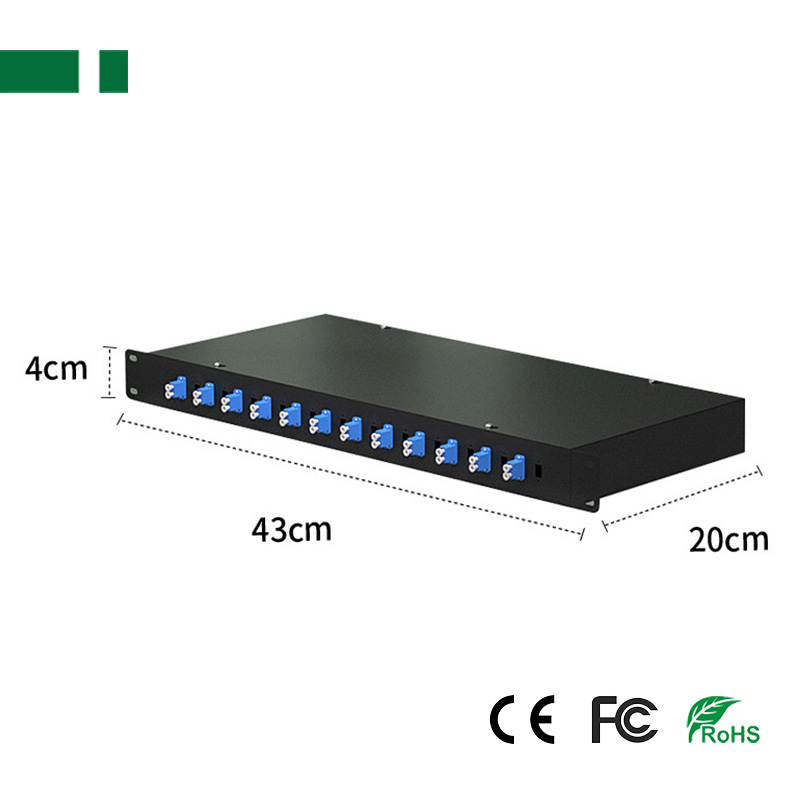

- ▪ Dimension: 485*200*40mm;
- ▪ Optional sdapter types: FC, LC, SC, ST;
- ▪ Suitable for indoor use.
- Product description: ▪ Fiber Optic Terminal Box is a user terminal device. lt is mainly used for terminal of FTTH system. The functions are splicing, splitting and output etc., and can prolong terminating, protection and
Description:
Fiber Optic Terminal Box is a user terminal device. lt is mainly used for terminal of FTTH system. The functions are splicing, splitting and output etc., and can prolong terminating, protection and management for the optical cable, which is the necessary device of optical network transfer.
Feature:
▪ 12 Ports Fiber Optic Termination Box suit for 19 Inch Rack Mount with LC adapter pigtail;
▪ Material: Hight quality steel with cover by electrostatic painted;
▪ Dimension: 485*200*40mm;
▪ Optional sdapter types: FC, LC, SC, ST;
▪ Suitable for indoor use.
▪ Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution. etc. all in one;
Specification:
Fiber Optic Terminal Box is a user terminal device. lt is mainly used for terminal of FTTH system. The functions are splicing, splitting and output etc., and can prolong terminating, protection and management for the optical cable, which is the necessary device of optical network transfer.
Feature:
▪ 12 Ports Fiber Optic Termination Box suit for 19 Inch Rack Mount with LC adapter pigtail;
▪ Material: Hight quality steel with cover by electrostatic painted;
▪ Dimension: 485*200*40mm;
▪ Optional sdapter types: FC, LC, SC, ST;
▪ Suitable for indoor use.
▪ Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution. etc. all in one;
Specification:

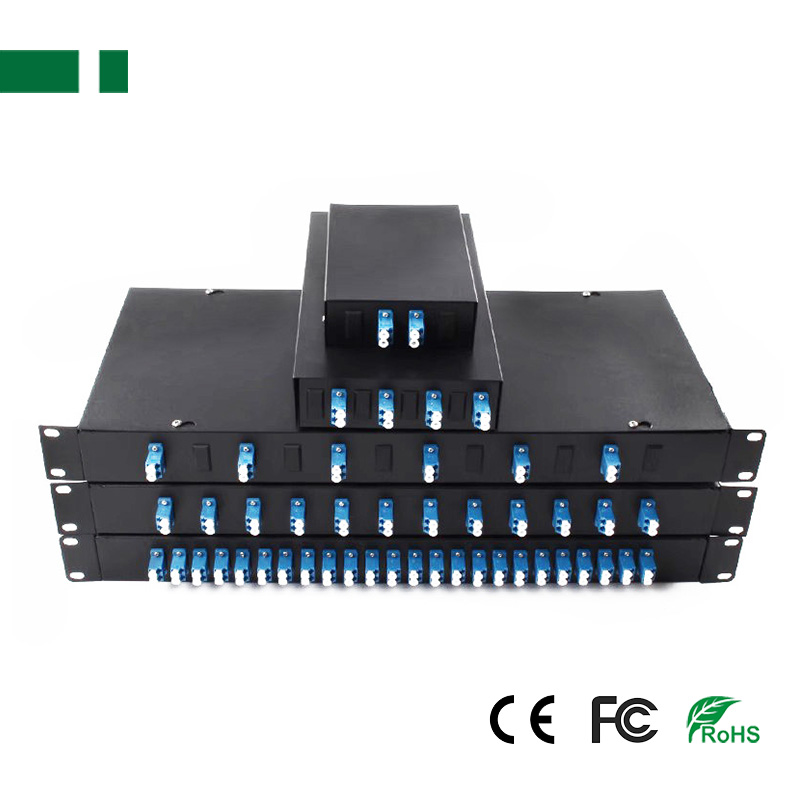

| 4-Port, 8-Port, 12-Port, 24-Port, 48-Port FC Single Mode Fiber Optic Terminal Box | ||||||
| Picture | Model | Channel | Conenctor | Fiber Type | Dimension(L*W*H) | Material |
|
CFB-104C/FC | 4 Ports | FC/UPC | Single Mode | 155*105*35mm | Thickening strengthens cold-rolled plates |
| CFB-108C/FC | 8 Ports | 240*135*40mm | ||||
| CFB-1012C/FC | 12 Ports | 485*200*40mm | ||||
| CFB-1024C/FC | 24 Ports | 485*200*40mm | ||||
| CFB-1048C/FC | 48 Ports | 485*200*87mm | ||||
| 4-Port, 8-Port, 12-Port, 24-Port, 48-Port LC Single Mode Fiber Optic Terminal Box | ||||||
| Picture | Model | Channel | Conenctor | Fiber Type | Dimension(L*W*H) | Material |
|
CFB-104C/LC | 4 Ports | LC/UPC | Single Mode | 155*105*35mm | Thickening strengthens cold-rolled plates |
| CFB-108C/LC | 8 Ports | 240*135*40mm | ||||
| CFB-1012C/LC | 12 Ports | 485*200*40mm | ||||
| CFB-1024C/LC | 24 Ports | 485*200*40mm | ||||
| CFB-1048C/LC | 48 Ports | 485*200*87mm | ||||
| 4-Port, 8-Port, 12-Port, 24-Port, 48-Port SC Single Mode Fiber Optic Terminal Box | ||||||
| Picture | Model | Channel | Conenctor | Fiber Type | Dimension(L*W*H) | Material |
|
CFB-104C/SC | 4 Ports | SC/UPC | Single Mode | 155*105*35mm | Thickening strengthens cold-rolled plates |
| CFB-108C/SC | 8 Ports | 240*135*40mm | ||||
| CFB-1012C/SC | 12 Ports | 485*200*40mm | ||||
| CFB-1024C/SC | 24 Ports | 485*200*40mm | ||||
| CFB-1048C/SC | 48 Ports | 485*200*87mm | ||||
| 4-Port, 8-Port, 12-Port, 24-Port, 48-Port ST Single Mode Fiber Optic Terminal Box | ||||||
| Picture | Model | Channel | Conenctor | Fiber Type | Dimension(L*W*H) | Material |
|
CFB-104C/ST | 4 Ports | ST/UPC | Single Mode | 155*105*35mm | Thickening strengthens cold-rolled plates |
| CFB-108C/ST | 8 Ports | 240*135*40mm | ||||
| CFB-1012C/ST | 12 Ports | 485*200*40mm | ||||
| CFB-1024C/ST | 24 Ports | 485*200*40mm | ||||
| CFB-1048C/ST | 48 Ports | 485*200*87mm | ||||
