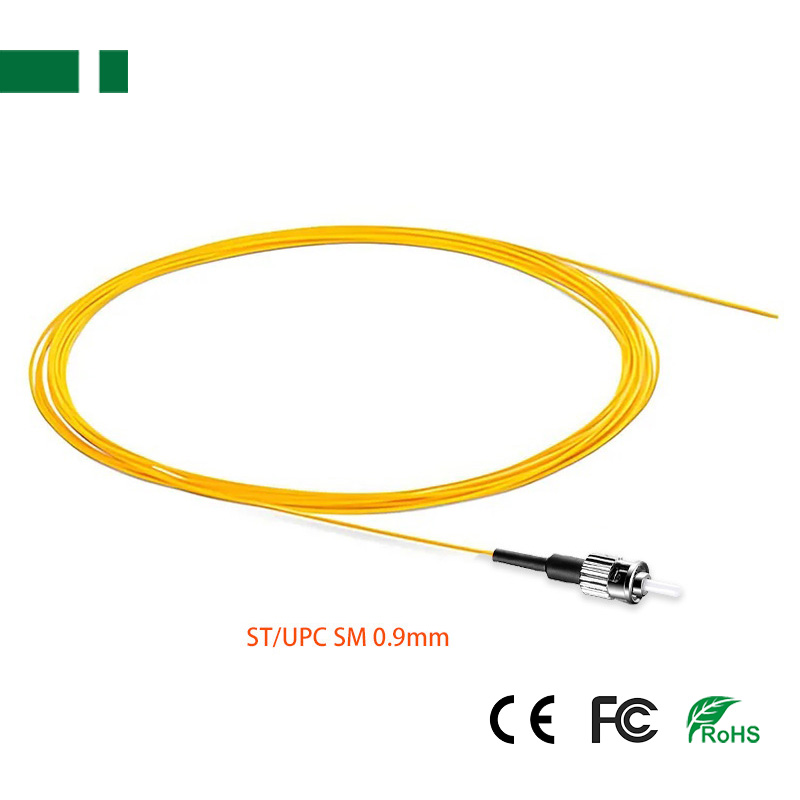

CPC01S-STU ST/UPC Single-Mode Single-Core Fiber Pigtail Cable

Description:
A fiber optic pigtail is a specialized type of fiber optic cable that features a connector (such as FC, LC, SC, ST or MPO) on one end and an exposed fiber on the other. This design allows the pigtail to be spliced directly into a main fiber optic cable or patch panel, facilitating seamless signal transmission. Pigtails are essential for permanent or semi-permanent installations, particularly in high-density environments like data centers and telecommunications networks.

Features:
▪ 0.9mm ST/UPC Single-Mode Single-Core Fiber Pigtail Cable;
▪ Length: 1M/ 2M/ 3M/ 5M/ 10M/ 15M/ 20M/ 25M/ 30M;
▪ Single Mode Yellow Pigtail: Ideal for high-speed data transmission over long distances;
▪ 0.9mm Diameter: Provides flexibility and durability for easy handling and routing;

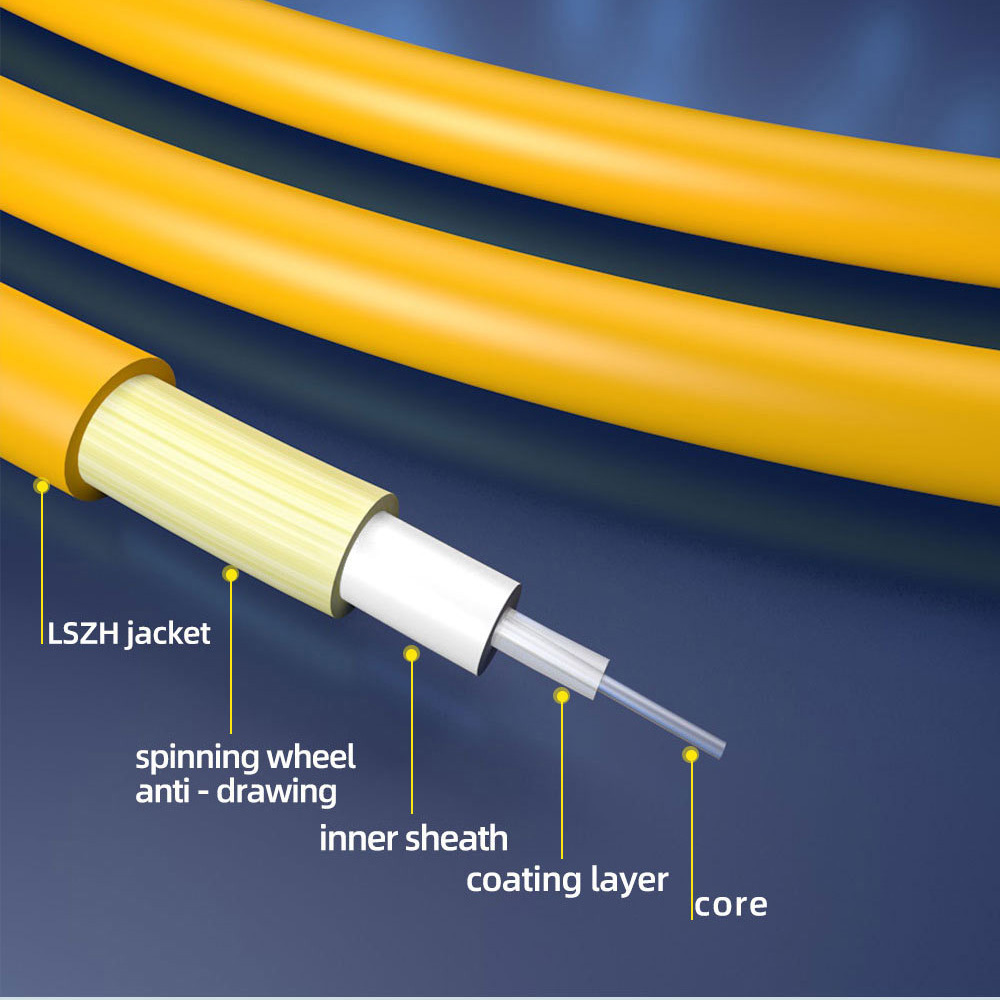

▪ LSZH Jacket Material: Offers flame retardant and low smoke properties for safer installations;
▪ Fiber Type G652D: Ensuring low attenuation and high bandwidth.
Speicification:

Model	CPC01S-SCU	CPC01S-SCA	CPC01S-LCU	CPC01S-LCA	CPC01S-FCU	CPC01S-FCA	CPC01S-STU	CPC01S-STA

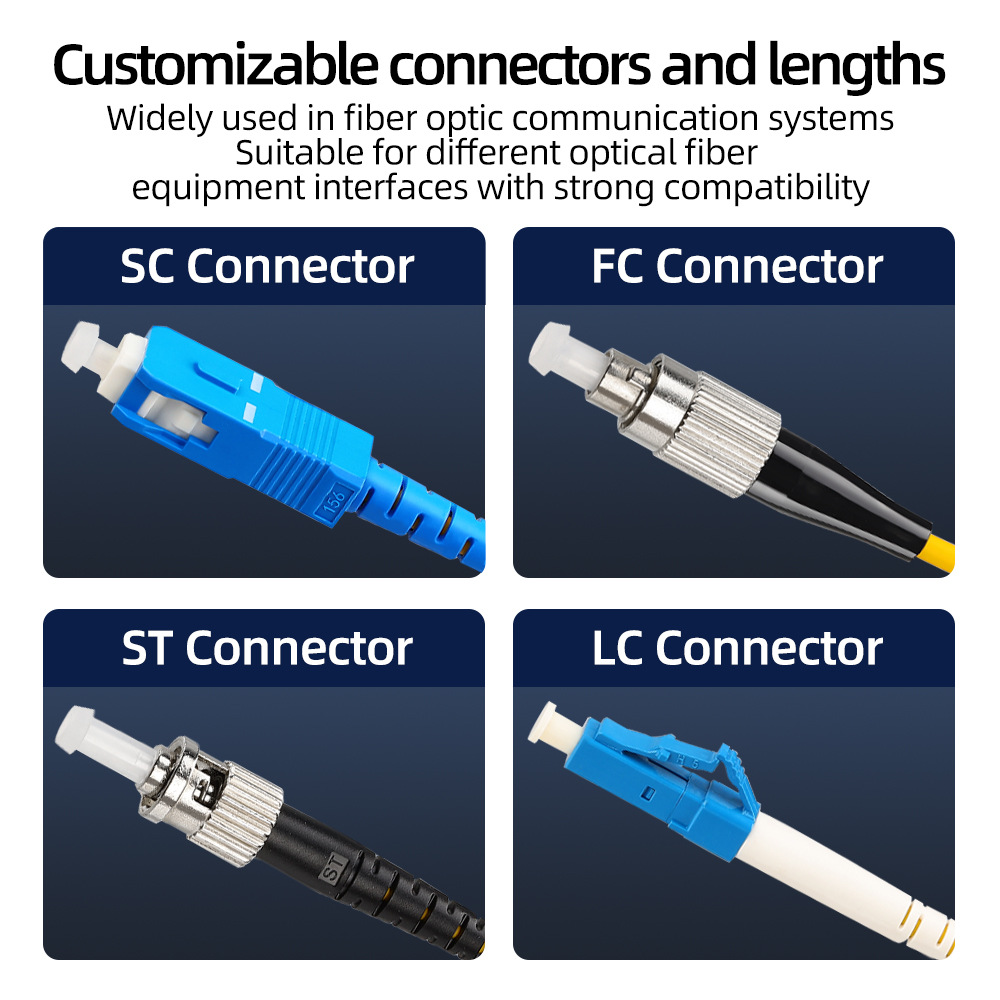

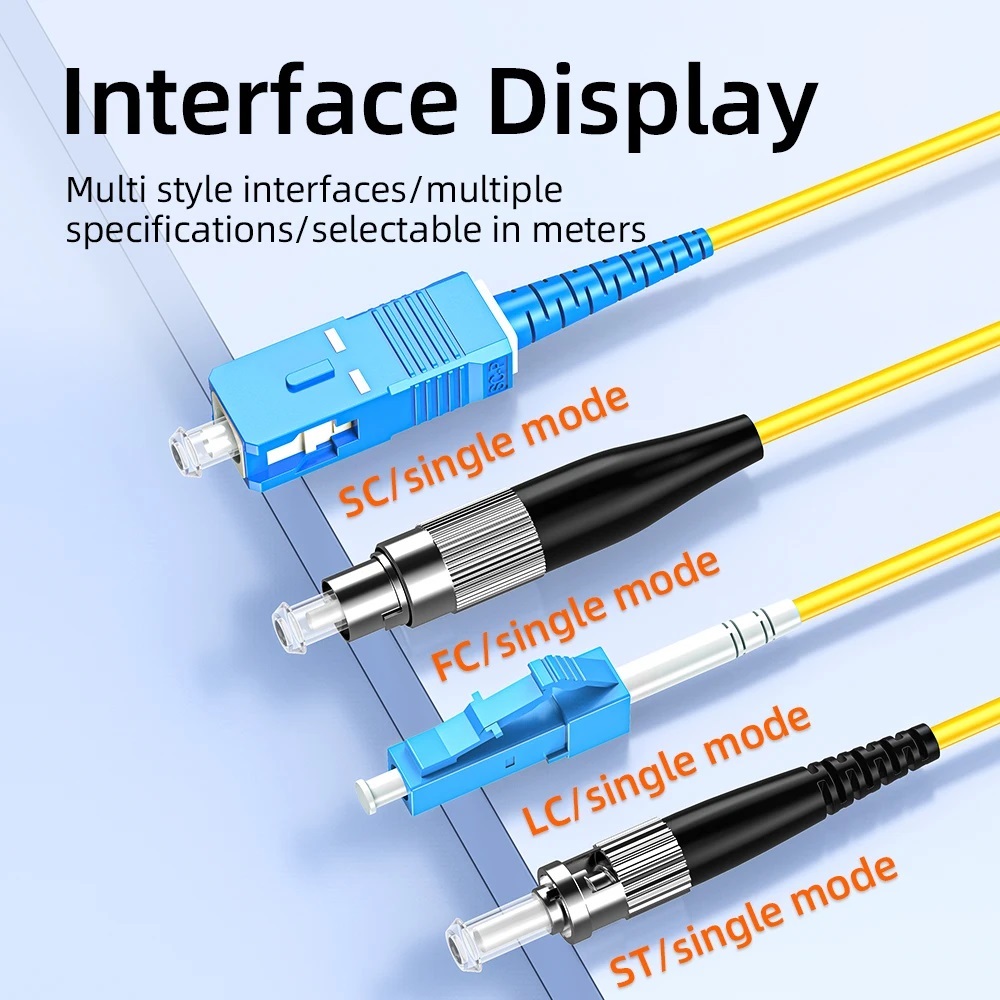

Connector A	SC		LC		FC		ST
Polish Type	UPC	APC	UPC	APC	UPC	APC	UPC	APC
Connector B	Un-Terminated
Length	1M/ 2M/ 3M/ 5M/ 10M/ 15M/ 20M/ 25M/ 30M
Fiber Mode	9/125
Fiber Count	Simplex
Fiber Grade	G.652.D
Minimum Bend Radius	30mm
Cable Diameter	0.9mm
Cable Jacket	PVC
Jacket Color	Yellow
Wavelength	1310nm / 1550nm
Durability	Over 1000 times
Insertion Loss	≤0.3dB
Return Loss	≥50dB
Temperature	Operating: -40~75°C, Storage: -45~85°C
