Home > Product > ▪ Fiber Optical Cable > SM Single-core Fiber Patch Cord

SM Single-core Fiber Patch Cord

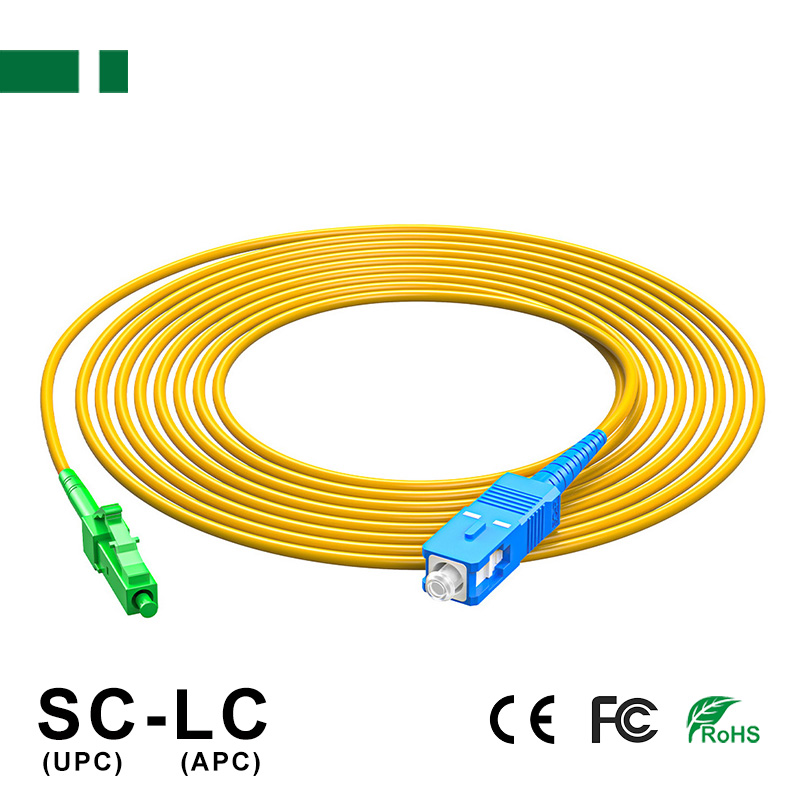

CPC02S-SCU-LCA SC/UPC-to-LC/APC Single-Mode Single-Core Fiber Cable

CPC02S-SCU-LCA SC/UPC-to-LC/APC Single-Mode Single-Core Fiber Cable

▪ Connector A: SC/UPC Connector;
▪ Connector B: LC/APC Connector;
▪ Length: 1M/ 2M/ 3M/ 5M/ 10M/ 15M/ 20M/ 25M/ 30M;

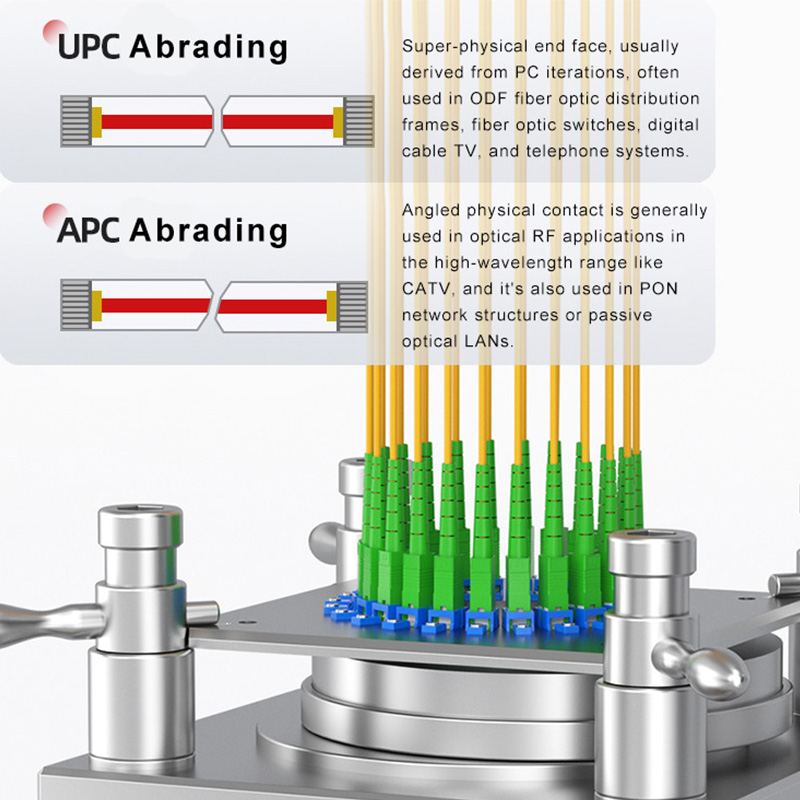

▪ PC, UPC, APC polishing optional;
Product description: ▪ Fiber Optic Patch cords are made from fiber optic cables with connectors at both ends, allowing for the transmission of data over long distances. These cables are commonly used in networking, teleco
INQUIRY EMAIL

Description:
Fiber Optic Patch cords are made from fiber optic cables with connectors at both ends, allowing for the transmission of data over long distances. These cables are commonly used in networking, telecommunications, and audio/video applications.

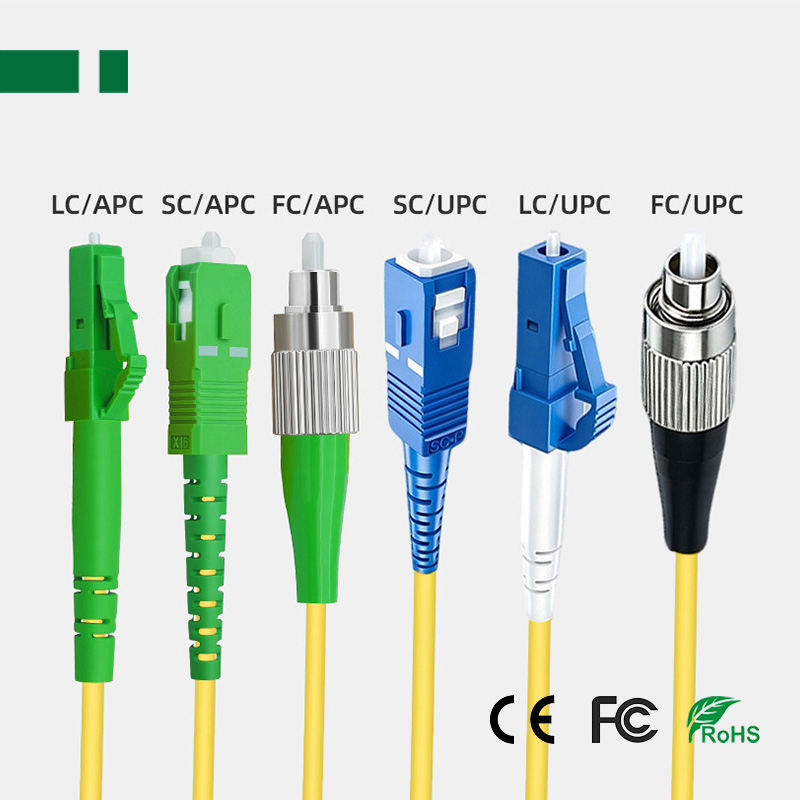

Fiber Optic Patch cords are classified by connectors at both ends,there are SC, FC, LC, ST, MU, DIN, D4, E2000, LX.5, MTRJ, VF-45 and SC-FC etc. hybrid patch cords.
Features:
▪ 3.0mm SC/UPC-to-LC/APC Single-Mode Single-Core Fiber Cable;
▪ Connector A: SC/UPC Connector;
▪ Connector B: LC/APC Connector;
▪ Length: 1M/ 2M/ 3M/ 5M/ 10M/ 15M/ 20M/ 25M/ 30M;
▪ Insertion loss: ≤0.2dB, Return loss: ≈50dB;
▪ Exterior Material: Polyethylene PVC;
▪ Singlemode or Multimode fiber optional.
More Optional:


Model: CPC02S-FCU-FCU	Model: CPC02S-SCU-SCU	Model: CPC02S-LCU-LCU	Model: CPC02S-STU-STU


Model: CPC02S-FCA-FCA	Model: CPC02S-SCA-SCA	Model: CPC02S-LCA-LCA	Model: CPC02S-FCU-STU


Model: CPC02S-FCU-LCU	Model: CPC02S-SCU-SCA	Model: CPC02S-LCU-LCA	Model: CPC02S-FCA-STU


Model: CPC02S-FCA-LCA	Model: CPC02S-SCU-LCU	Model: CPC02S-SCU-LCA	Model: CPC02S-SCU-STU


Model: CPC02S-FCU-FCA	Model: CPC02S-SCA-LCA	Model: CPC02S-SCA-LCU	Model: CPC02S-SCA-STU


Model: CPC02S-FCU-LCA	Model: CPC02S-FCA-LCU	Model: CPC02S-LCU-STU	Model: CPC02S-LCA-STU


Model: CPC02S-SCU-FCA	Model: CPC02S-SCA-FCU	Model: CPC02S-SCU-FCU	Model: CPC02S-SCA-FCA
