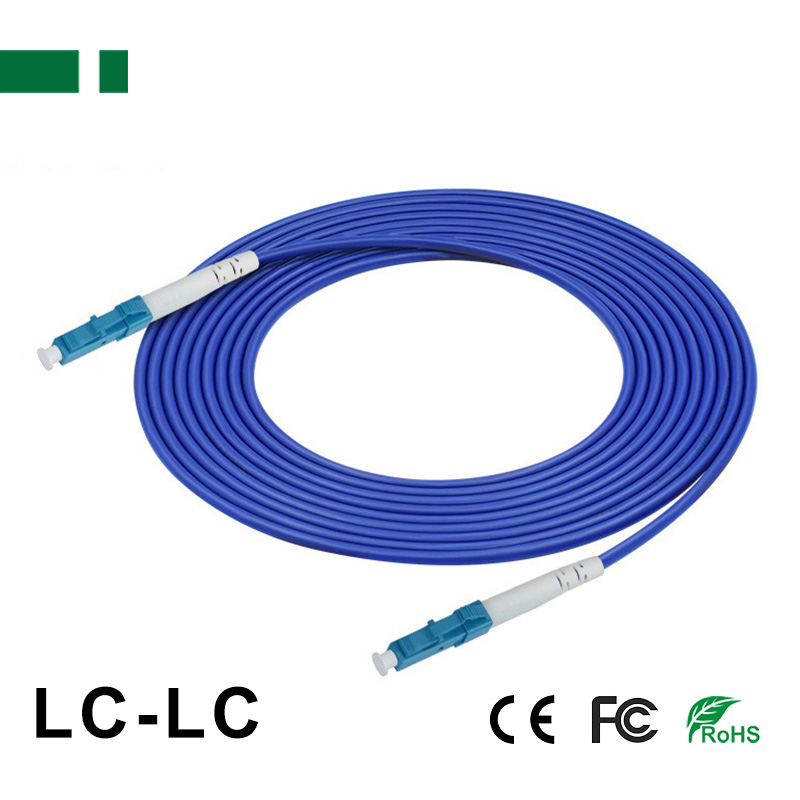

CPC11SA-LCU-LCU LC/UPC-LC/UPC Armored Single-mode Single-core Optical Fiber Patch Cord

Description:
Steel armoured patchcords with build-in metal armor can provide stronger protection of the optical fibers than standard Fiber Optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents. With the high-quality ceramic ferrule, it has good conformity and low Insertion Loss.

Features:
▪ 3.0mm Armored Single-mode Single-core Optical Fiber Patch Cord;
▪ Connector A: LC/UPC Connector;
▪ Connector B: LC/UPC Connector;
▪ Length: 1M/ 2M/ 3M/ 5M/  10M/ 15M/ 20M/ 25M/ 30M/ 40M/ 45M/ 50M/ 60M/ 80M/ 100M/ 120M/ 150M/ 200M/ 250M/ 300M;
▪ A-Grade Fiber Core：More stable data transmission, strong bending resistance, flexibility, high sensitivity, and strong resistance to electromagnetic interference
▪ A-Grade Plug-in Core, low loss, stable performance;

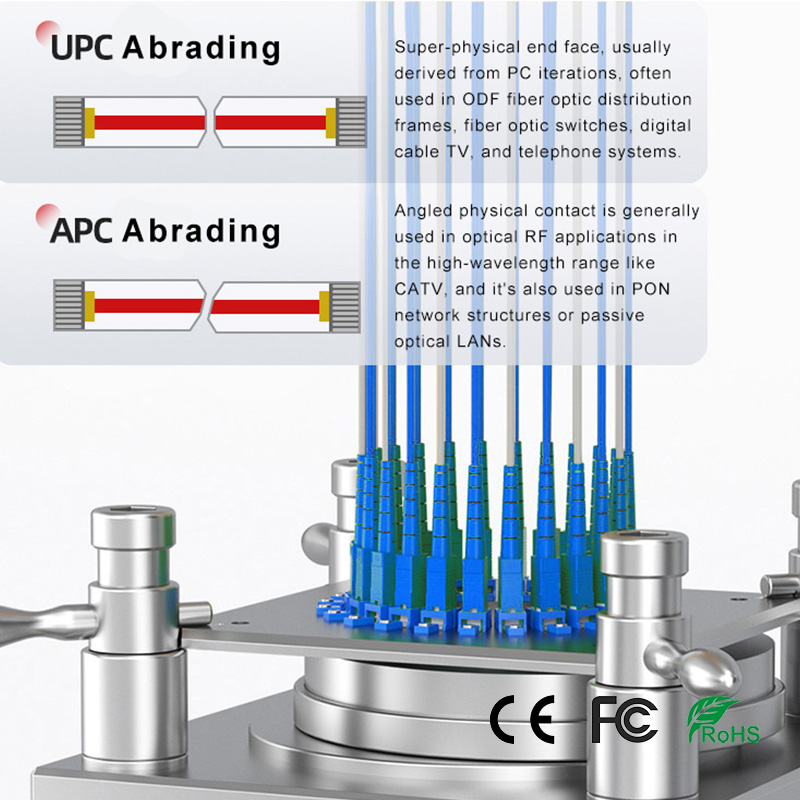

▪ PC, UPC, APC polishing optional;
▪ Low smoke and Halogen-free PVC outer skin: Flame retardant, Anti pulling & Bend-resistant;

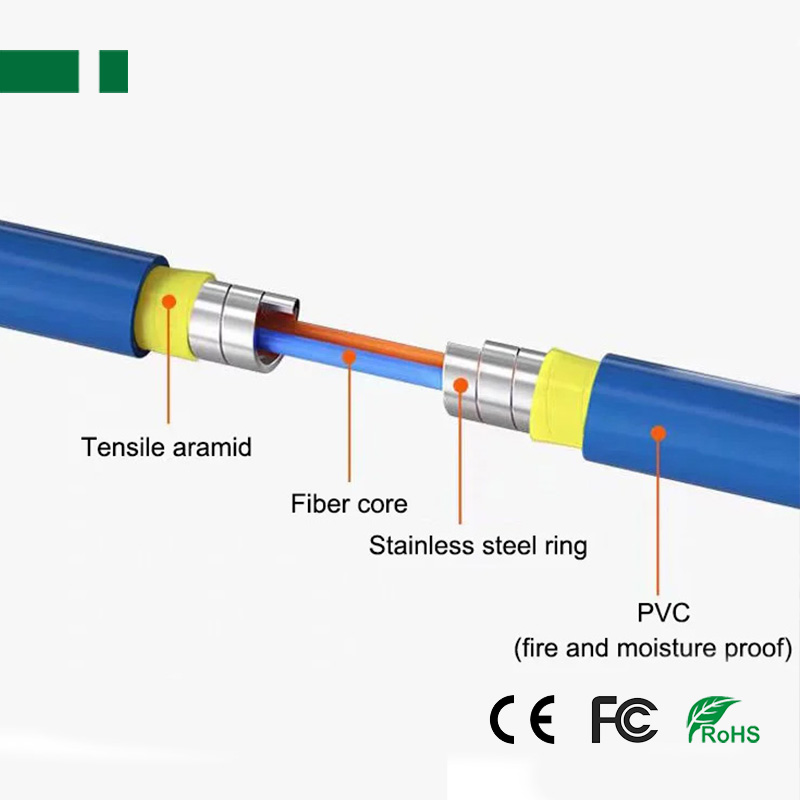

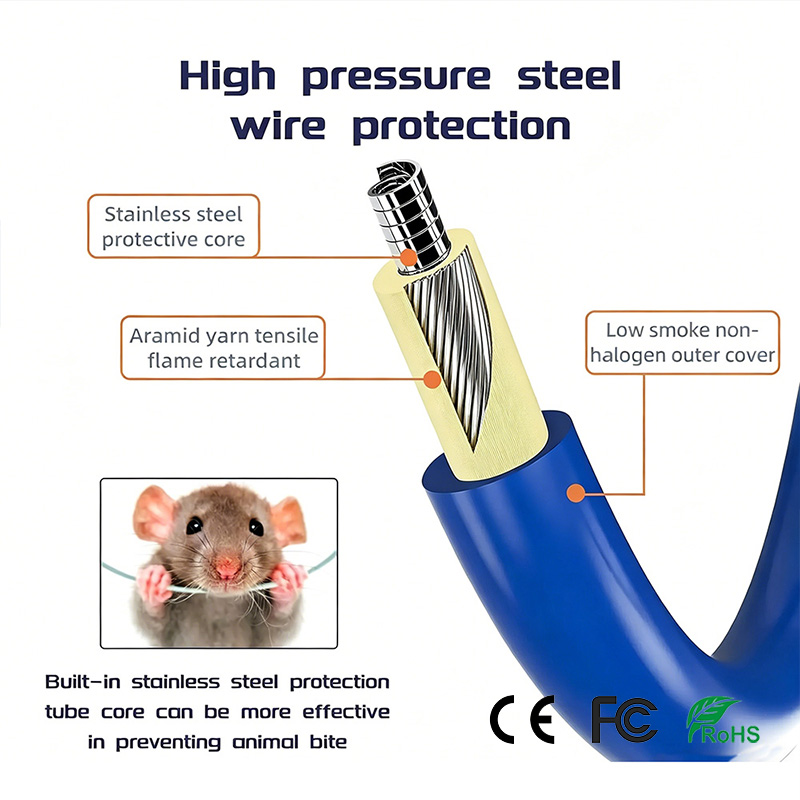

▪ Double wrapped with TPE and stainless steel ring, resistant to pulling and does not break.

More Optional:

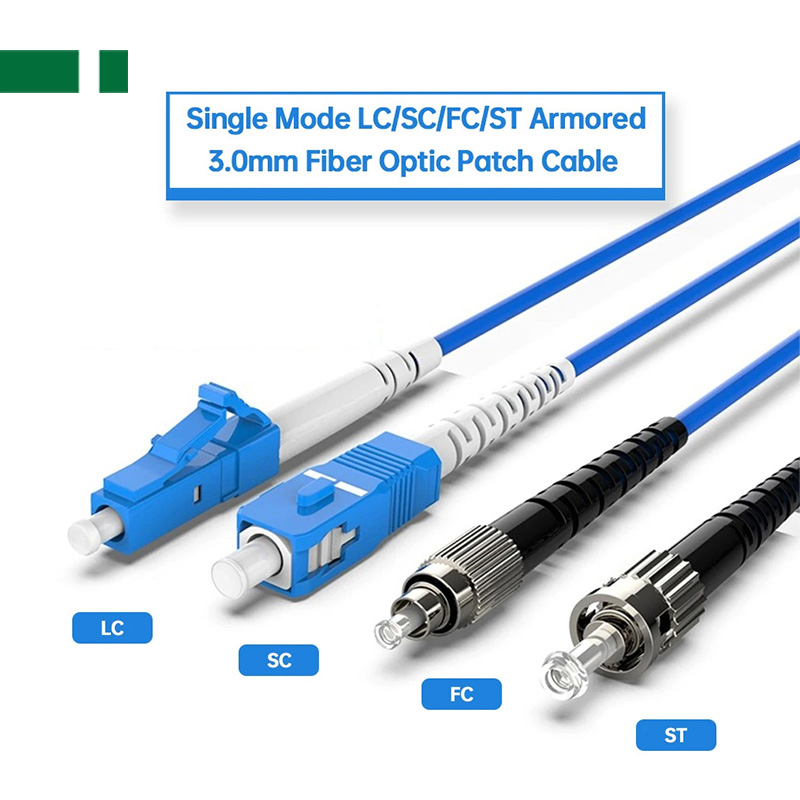

Model: CPC11SA-FCU-FCU		Model: CPC11SA-FCU-LCU		Model: CPC11SA-FCU-STU		Model: CPC11SA-LCU-LCU
Model: CPC11SA-LCU-STU		Model: CPC11SA-SCU-FCU		Model: CPC11SA-SCU-LCU		Model: CPC11SA-SCU-SCU
Model: CPC11SA-SCU-STU		Model: CPC11SA-STU-STU
